Clean. Controlled. Consistent.
Pneumatic Vacuum Conveying Solutions | Powered by Delfin x Material Transfer

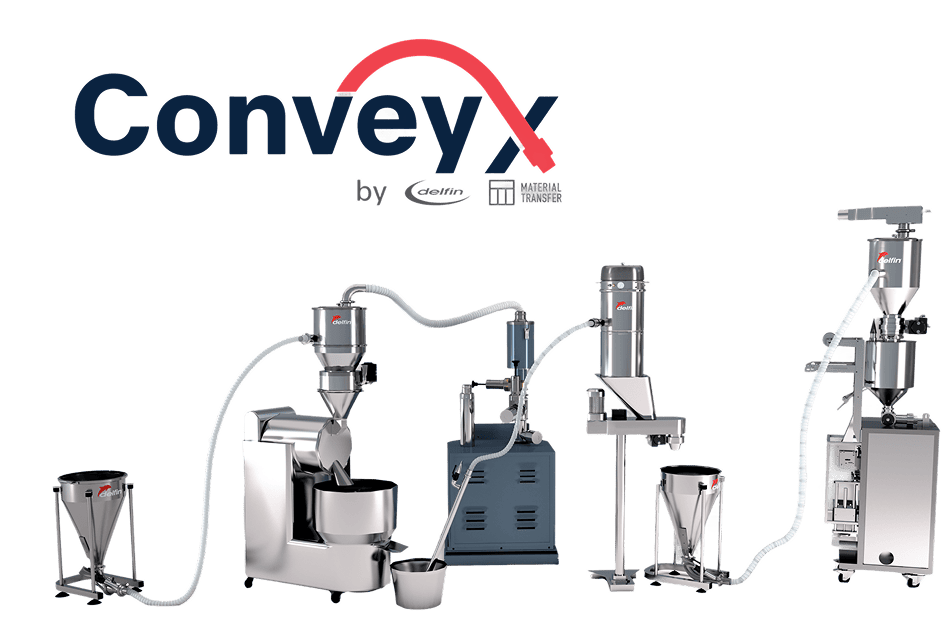

ConveyX | Pneumatic Vacuum Conveyors
ConveyX delivers reliable, dust-tight powder transfer through a negative-pressure system that minimizes contamination, prevents product loss, and protects operator health. Its tool-free, quick-clean design shortens changeovers to maximize uptime and efficiency, while CE and FDA certifications ensure compliance and quality in every application.
Fully enclosed and gentle in operation, ConveyX maintains cleaner workspaces, reduces housekeeping and air handling costs, and safeguards product integrity. The modular, plug-and-play design scales easily from single pickup points to multi-drop systems, offering fast installation and flexible performance that grows with your production needs.
Advantages & Benefits:
- Affordable to start: Delivers strong returns with minimal upfront investment.
- Fast setup: Plug-and-play installation keeps operations running with little downtime.
- Reliable design: Few moving parts mean almost no routine maintenance is required.
- Safer work environment: Enclosed system reduces dust and limits manual handling risks.
- Simple to use and clean: Tool-free access and smooth surfaces make cleaning quick and hygienic.
- Maintains product quality: Prevents alteration or contamination during transfer.
- Space-saving: Compact design avoids blocking production areas.
- Promotes cleanliness: Improves air quality and makes housekeeping easier.
- Built for safety: Available options meet ATEX/NFPA standards for hazardous environments
BUILT FOR CONTAINMENT. ENGINEERED FOR COMPLIANCE.
PRO Line | Cost-smart transfer for low-density, free-flowing materials
Engineered for very low bulk densities (~0.01–0.06 lb/ft³), the PRO Line moves dry, easy-flowing products reliably and without fuss, ideal when you need dependable performance on a sensible budget.
- Excellent value: robust results at an accessible price
- Smooth flow: optimized for dry, free-flowing powders/granules
- Simple to deploy: straightforward setup and operation, low upkeep
| Electric Range (50 Hz) | Unit | 230V/1ph | 400V/ph |
|---|---|---|---|
Power | hp (kW) | 1.5 (1.15) | 2.0 - 23.2 (22-17.3) |
Water Lift | in H2O (mmH20) | 100.4 (2549) | 84.3-216.8 (2141-5506) |
Airflow | CFM (m3/h) | 105.9 (180) | 187.2 - 706.3 (318-1200) |
Flexibility
Flexible tubing bends easily to fit complex layouts and can be quickly repositioned or modified, enabling rapid system reconfiguration as production needs change.
Sanitation
Smooth, crevice-free surfaces and a simple air load enable rapid pipe sanitation and filter changes, minimizing downtime and supporting compliance.
Maintenance
Air-operated vacuum conveyors have no moving mechanical parts, eliminating routine maintenance & reducing long-term operating costs.
Quality
Overhead conveying minimizes product drop & surface contact, while controlled routing keep materials separated, preventing cross-contamination & preserving product integrity.
Safety
ATEX certified and NFPA compliant for combustible dust. The sealed conveyor prevents toxic material dispersion for enhanced
facility safety.
TECH Line | The most flexible, sanitary conveying platform
Move virtually any material, from ultra-light powders to higher-density granules, with a modular system that adapts to your process and cleans fast.
- Any product, any density: reliable transfer across a wide range of materials
- Modular & scalable: reconfigure pickups, drops, and runs as needs evolve
- Fast sanitation: tool-less access and smooth, hygienic surfaces (CIP-ready options)
- Consistent, clean operation: gentle, enclosed flow that protects product and people
| Pneumatic Range | Unit | Venturi |
|---|---|---|
Water Lift | in H2O (mmH20) | 301.2 (7650) |
Power | hp (kW) | 5.36 - 20.1 (4 - 15) |
Air Supply | CFM (lt/min) | 13.1 - 49.5 (370 - 1400) |
Airflow | CFM (m3/h) | 64.7 - 223.7 (110 - 380) |

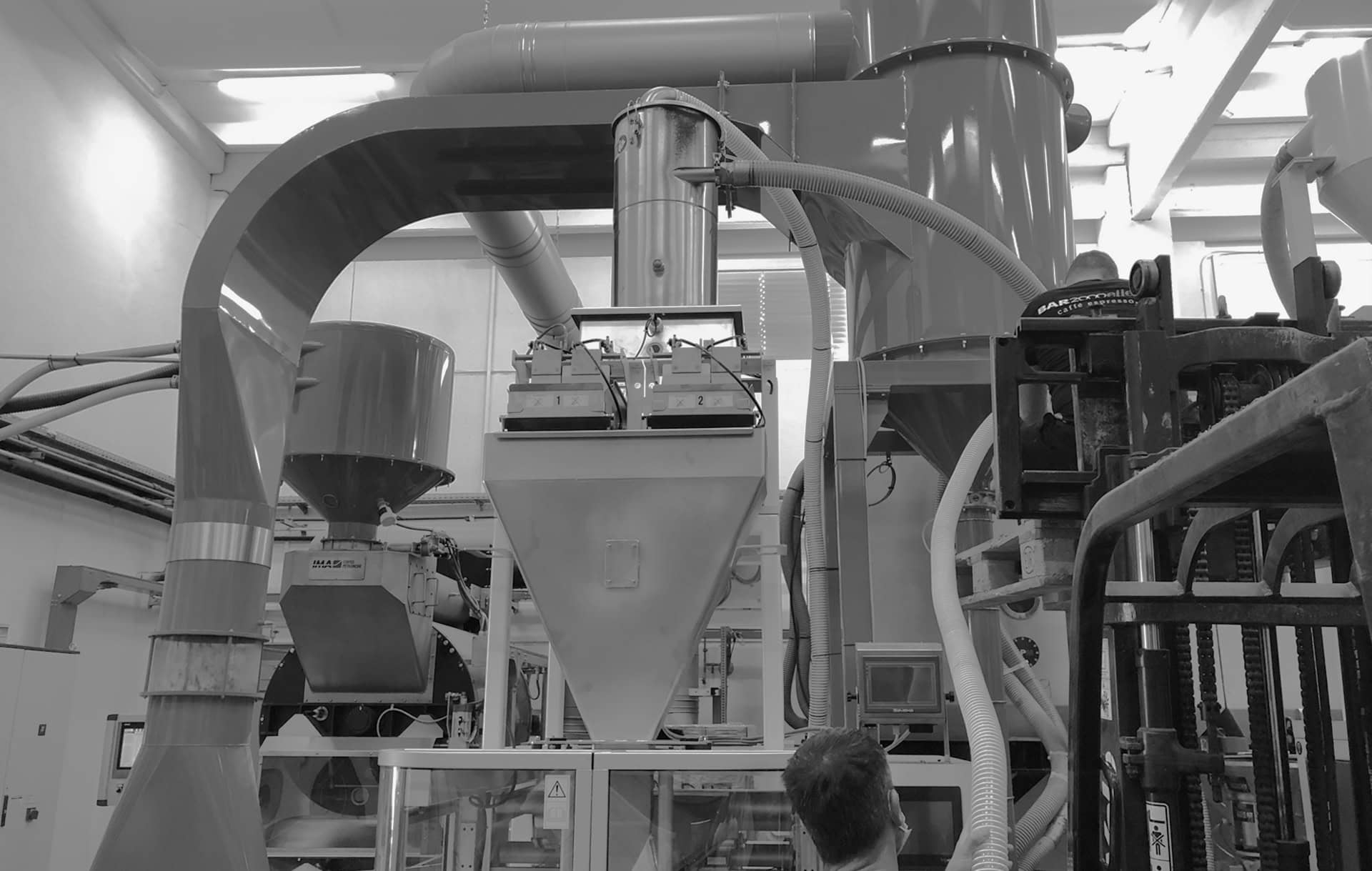

Field photos
Watch Now
SEAMLESS INTEGRATION. ENDLESS APPLICATIONS.
Use of pneumatic vacuum conveyors can improve productivity and efficiency up to 30% in applications like bulk material handling, material separation, loading, discharging, distribution, blending, and dosing.
Flow Problems Can’t Wait. Neither Should You.
Have questions or need more information about our products? Our experts are here to help.
